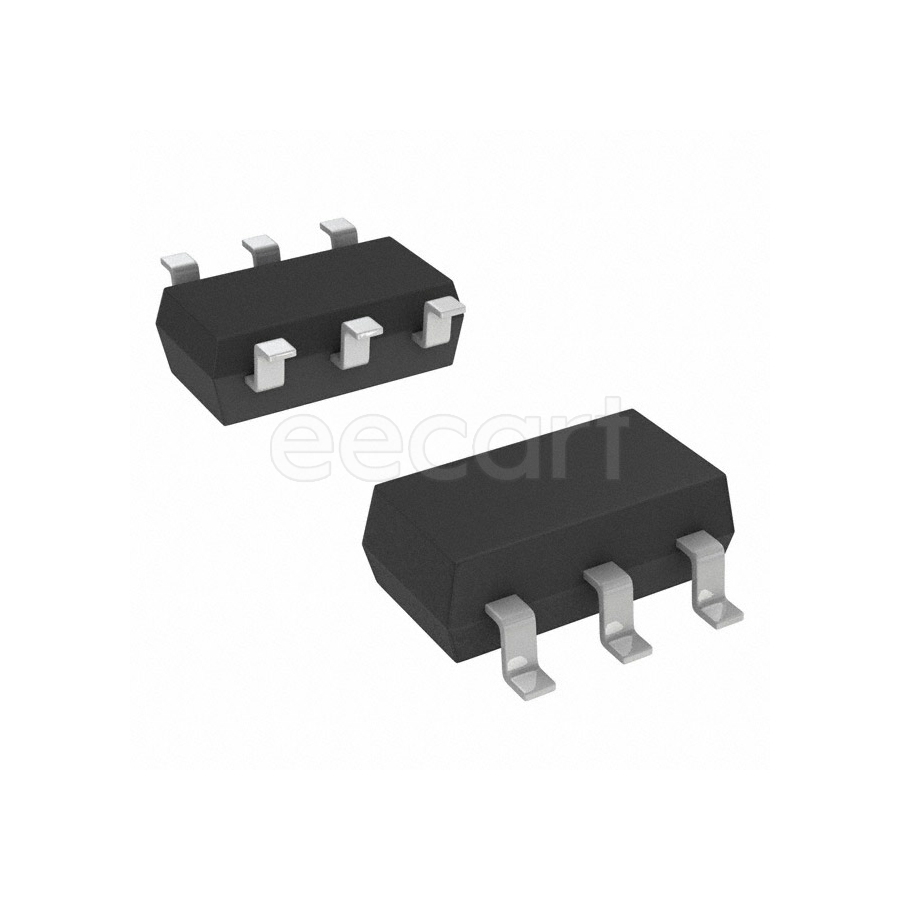

DMMT5551-7-F
Manufacturer:
Diodes Incorporated
Mfr.Part #:
DMMT5551-7-F
Datasheet:
Description:
BJTs SOT-26 SMD/SMT 2 NPN (Dual) 300 mW Collector Base Voltage (VCBO):180 V Collector Emitter Voltage (VCEO):160 V Emitter Base Voltage (VEBO):6 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 180 V |
| Length | 3 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Height | 1.1 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | 2 NPN (Dual) Matched Pair |
| REACH SVHC | No SVHC |
| Frequency | 300 MHz |
| Number of Elements | 2 |
| Current Rating | 200 mA |
| Max Power Dissipation | 300 mW |
| Power Dissipation | 300 mW |
| Max Collector Current | 200 mA |
| Collector Emitter Breakdown Voltage | 160 V |
| Transition Frequency | 300 MHz |
| Element Configuration | Dual |
| Max Frequency | 300 MHz |
| Collector Emitter Voltage (VCEO) | 160 V |
| Max Breakdown Voltage | 160 V |
| Gain Bandwidth Product | 300 MHz |
| Collector Base Voltage (VCBO) | 180 V |
| Collector Emitter Saturation Voltage | 200 mV |
| Emitter Base Voltage (VEBO) | 6 V |
| hFE Min | 80 |
| Schedule B | 8541210080 |
| Max Cutoff Collector Current | 50 nA |
| Transistor Type | 2 NPN (Dual) |
Stock: 1489
Distributors
pcbx
pcbxUnit Price$0.18221
Ext.Price$0.18221
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18221 | $0.18221 |
| 10 | $0.16198 | $1.61980 |
| 50 | $0.14400 | $7.20000 |
| 100 | $0.12485 | $12.48500 |
| 500 | $0.10825 | $54.12500 |
| 1000 | $0.10413 | $104.13000 |
| 3000 | $0.10016 | $300.48000 |
| 5000 | $0.09457 | $472.85000 |
